I just really started playing around with WPF and XAML and how to build an application in this new format. I really like it, but at the same time, I have a lot to still learn! For my first example, I wanted a form that would have some sort of event that caused UI to change in some manner. For this, I put together a form with a simple Button control on it and a place to put some results on the form after the button is clicked. This form really needs two pieces to work - Window1.xaml and Window1.xaml.cs. Window1.xaml is the visual form and it is laid out using XAML, while Window1.xaml.cs is the code-behind file.

What I really like about this WPF model is that it is very much like the ASP.NET model - which I find quite attractive. You have a page dealing with presentation and another page that deals with all of the business logic surrounding the page. The code for the Window1.xaml file is presented here:

<Window x:Class="XAML_Example.Window1"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="XAML_Example" Height="300" Width="300"
>
<
Grid>
   <
Button Height="23" Margin="15,15,125,0" Name="button1" VerticalAlignment="Top" Click="button1_Click">Random Number</Button>
   <
ScrollViewer Margin="0,50,0,0">
      <
TextBlock Name="textBlock1" TextWrapping="Wrap" FontSize="20" FontWeight="Bold" />
   </
ScrollViewer>
</
Grid>
</
Window>

From this, you can see the entire form is defined using the <Window> element. Looking at the attributes of the element, you can also see that I defined the title of the form and its size. All the items within the <Grid> element can actually be in any order you want as the real emphasis is on the Margin attribute which specifies the location of the object. You can see that I have a Button control, a ScrollViewer control, and a TextBlock control on the form. Looking more closely at at the <Button> control, you can create an event for this by simply adding the appropriate attribute. In this case, the Click attribute is added and a method name is assigned to it (button1_Click()). This points to a method that is contained in your code-behind file - Window1.xaml.cs.

using System;

namespace XAML_Example
{

   public partial class Window1: System.Windows.Window

{

public Window1()
       {
             InitializeComponent();
        }

        public void button1_Click(object sender, EventArgs e)

{

Random generator = new Random();

int randomValue;
             randomValue = generator.Next(10, 100);
             textBlock1.Text +=
" " + randomValue.ToString();
         }

       }
}

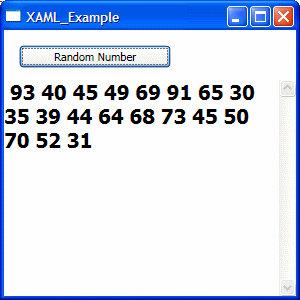

Running this bit of code and pressing the button to initiate the button1_Click event will give you something like the following results as presented here:

Enjoy!
